| Form factor | 2U, 1 node |
| Workload | Performanceintensive SQL and Oracle OLTP |

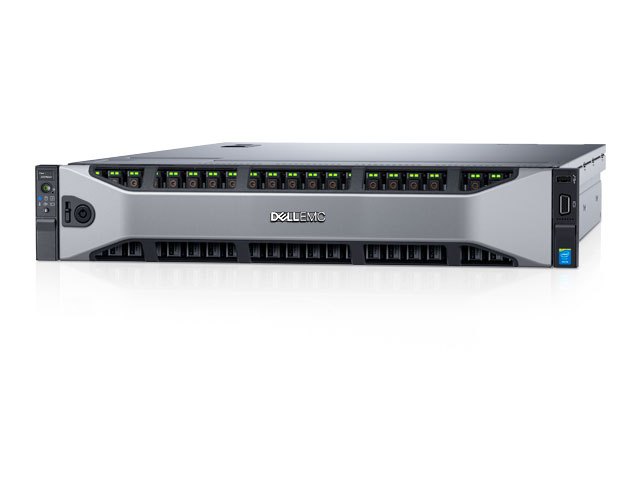

| Dell PowerEdge server platform | R730xd |
| Hypervisor boot | 64GB SATADOM |
| Hypervisor options | Nutanix AHV, VMware® ESXi™ 5.5 U3 and 6.0 (U1 and U2) Microsoft® Windows Server® 2012 R2 with Hyper-V® Dell OEM Standard or Datacenter Edition Factory Installed |
| License options | Nutanix Starter, Pro and Ultimate License |
| Software maintenance | Nutanix 1-, 3- or 5-year Software Maintenance/Assurance |
| Support | 1-, 3- or 5-year coterminus ProSupport (4 hr and NBD) or ProSupport Plus comprehensive XC Series support with Nutanix assist |
| Intel® Xeon® processors |
|
| Data storage controller | Dell SAS HBA330 |
| Drive type | 24 x 2.5” drives |
| SSD capacities | 400GB, 800GB, 1.6TB; min 4; all-flash version available with 24 SSDs of the same capacity |
| HDD capacities (max 40TB total per node) | 1TB, 2TB; max 20 |
| Self-encrypting drives (SED) | SSD: 400GB, 800GB, 1.6TB HDD: 2TB |
| DIMMs | 4–24 x 16GB and 32GB RDIMMs or 64GB LRDIMMs, DDR4, installed in pairs |
| Memory configs | 64GB–1.5TB |
| Integrated networking (maximum 2 per appliance) | Intel X540-T2 Dual Port 10GBASE-T and I350 1GBASE-T daughter card, or Intel X520 Dual Port 10Gb DA/SFP+ and I350 1GBASE Dual Port daughter card |
| Max total Ethernet ports | 18 |
