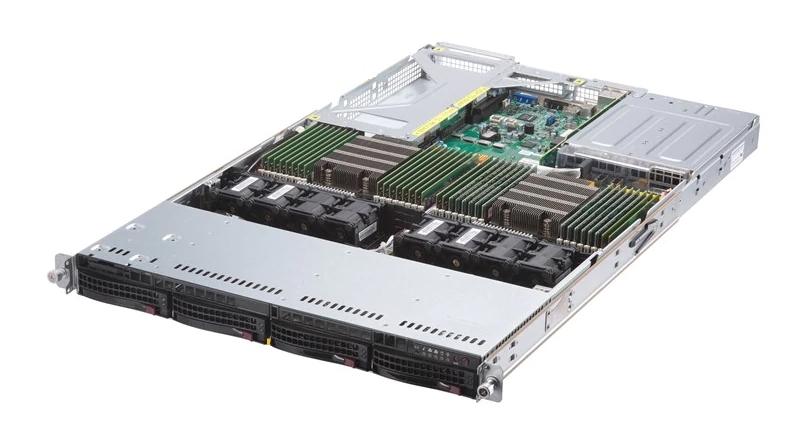

Характеристики сервера 1023US-TR4
| Форм-фактор |
1U Rackmount
|
| Процессор |
Dual AMD EPYC™ 7001/7002 series Processors (Board revision 2.x required) Socket SP3 Supports CPU TDP 225W / cTDP up to 240W |
| Память |
32 DIMM slots Supports up to 4TB Registered ECC DDR4 2666MHz SDRAM (7001 Processors) Supports up to 8TB Registered ECC DDR4 3200MHz SDRAM (Board revision 2.x required + 7002 Processors) 8-channel memory bus |
| Жесткие диски |
Four 3.5″ Hot-swap SATA drive bays
|
| Слоты расширения |
2 PCI-E x16 (FH / 9.5″L) slots 2 PCI-E x8 slots (1LP, 1 internal LP) |
| Сетевые порты | Quad Gigabit LAN ports via Intel i350AM4 |
| Интерфейсы |
Quad Gigabit LAN ports 1 RJ45 Dedicated IPMI LAN port 3 USB 3.0 ports (2 rear + 1 Type A) 1 VGA port 4 SAS3 ports support via optional Add-on Card 4 NVMe support with optional cables 1 COM port (rear) 2 SATA DOM power connector TPM 1.2 header |
| Блок питания | 1000W Redundant Power Supplies with PMBus |
| Размер, глубина | 1U, 737 мм |
