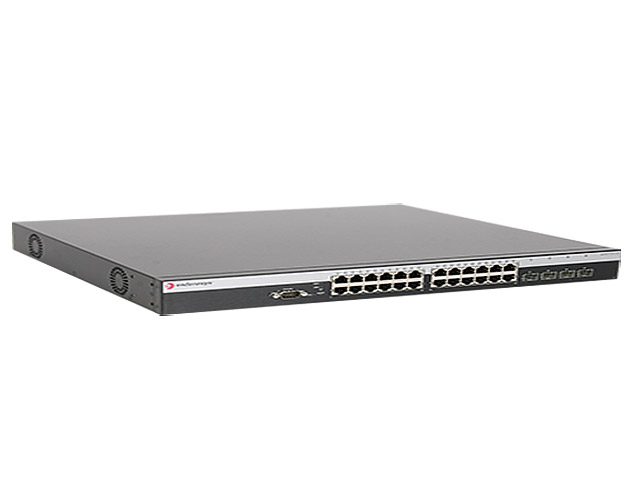

Характеристики Extreme Networks B-Series Stackable Switches
Для моделей B5G124-24; B5G124-24P2; B5G124-48; B5G124-48P2
Performance
|
|
B5G124-24
|
B5G124-24P2
|
B5G124-48
|
B5G124-48P2
|
|---|---|---|---|---|
| Throughput Capacity wire- speed Mpps (switch / stack) |
35.7Mpps / 285.7Mpps | 35.7Mpps / 285.7Mpps | 71.4Mpps / 571.4Mpps | 71.4Mpps / 571.4Mpps |
| Switching Capacity (switch/stack) | 48Gbps (35.7Mpps ) / 384Gbps (285.7Mpps) | 48Gbps (35.7Mpps ) / 384Gbps (285.7Mpps) | 96Gbps (71.4Mpps) / 768Gbps (571.4Mpps) | 96Gbps (71.4Mpps) / 768Gbps (571.4Mpps) |
| Stacking Capacity (switch/stack) | 48Gbps (35.7Mpps) / 384Gbps (285.7Mpps) | 48Gbps (35.7Mpps) / 384Gbps (285.7Mpps) | 48Gbps (35.7Mpps) / 384Gbps (285.7Mpps) | 48Gbps (35.7Mpps) / 384Gbps (285.7Mpps) |
| Aggregate Throughput Capacity (switch/stack) |
96Gbps (71.4Mpps) / 768Gbps (571.4Mpps) | 96Gbps (71.4Mpps) / 768Gbps (571.4Mpps) | 144Gbps (107.1Mpps) / 1,152Gbps (857.1Mpps) | 144Gbps (107.1Mpps) / 1,152Gbps (857.1Mpps) |
PoE Specifications
|
|
B5G124-24
|
B5G124-24P2
|
B5G124-48
|
B5G124-48P2
|
|---|---|---|---|---|
| N/A | Yes | N/A | Yes | |
| N/A | Yes | N/A | Yes | |
| N/A | 375 watts per switch with up to 30 watts per port Per-port switch power monitor: Enable/disable Priority safety Overload and short-circuit protection |
N/A | 375 watts per switch with up to 30 watts per port Per-port switch power monitor: Enable/disable Priority safety Overload and short-circuit protection |
Physical Specifications
|
|
B5G124-24
|
B5G124-24P2
|
B5G124-48
|
B5G124-48P2
|
|---|---|---|---|---|
| Dimensions (H x W x D) | H: 4.4 cm (1.73”) W: 44.1 cm (17.36”) D: 36.85 cm (14.51”) |
H: 4.4 cm (1.73”) W: 44.1 cm (17.36”) D: 36.85 cm (14.51”) |
H: 4.4 cm (1.73”) W: 44.1 cm (17.36”) D: 36.85 cm (14.51”) |
H: 4.4 cm (1.73”) W: 44.1 cm (17.36”) D: 36.85 cm (14.51”) |
| Net Weight | 4.92 kg (10.85 lb) | 6.10 kg (13.45 lb) | 5.31 kg (11.70 lb) | 6.49 kg (14.30 lb) |
| MTBF | 394,679 hours | 345,093 hours | 308,359 hours | 260,806 hours |
| Physical Ports | (24) 10/100/1000 auto-sensing, auto-negotiating MDI/MDI-X RJ45 ports (4) Combo SFP ports (2) dedicated stacking ports (1) DB9 console port (1) RPS connector |
(24) 10/100/1000 PoE (.af + .at) auto-sensing, auto-negotiating MDI/MDI-X RJ45 ports (4) Combo SFP ports (2) dedicated stacking ports (1) DB9 console port (1) RPS connector |
(48) 10/100/1000 auto-sensing, auto-negotiating MDI/MDI-X RJ45 ports (4) Combo SFP ports (2) dedicated stacking ports (1) DB9 console port (1) RPS connector |
(48) 10/100/1000 PoE (.af + .at) auto-sensing, auto-negotiating MDI/MDI-X RJ45 ports (4) Combo SFP ports (2) dedicated stacking ports (1) DB9 console port (1) RPS connector |
Power Requirements
|
|
B5G124-24
|
B5G124-24P2
|
B5G124-48
|
B5G124-48P2
|
|---|---|---|---|---|
| Normal Input Voltage | 100 — 240 VAC | 100 — 240 VAC | 100 — 240 VAC | 100 — 240 VAC |
| Input Frequency | 50 – 60 Hz | 50 – 60 Hz | 50 – 60 Hz | 50 – 60 Hz |
| Input Current | 2 A Max | 7.5 A Max | 2 A Max | 7.5 A Max |
| Power Consumption | 48 watts | 93 watts | 76 watts | 125 watts |
Temperature
|
|
B5G124-24
|
B5G124-24P2
|
B5G124-48
|
B5G124-48P2
|
|---|---|---|---|---|
| IEC 6-2-1 Standard Operating Temperature | 0° C to 50° C (32° F to 122° F) | 0° C to 50° C (32° F to 122° F) | 0° C to 50° C (32° F to 122° F) | 0° C to 50° C (32° F to 122° F) |
| IEC 6-2-14 Non-Operating Temperature |
-40° C to 70° C (-40° F to 158° F) | -40° C to 70° C (-40° F to 158° F) | -40° C to 70° C (-40° F to 158° F) | -40° C to 70° C (-40° F to 158° F) |
| Heat Dissipation | 164BTUs/Hr | 318BTUs/Hr | 258BTUs/Hr | 427BTUs/Hr |
Humidity
|
|
B5G124-24
|
B5G124-24P2
|
B5G124-48
|
B5G124-48P2
|
|---|---|---|---|---|
| Operating Humidity | 5% to 95% non-condensing | 5% to 95% non-condensing | 5% to 95% non-condensing | 5% to 95% non-condensing |
Vibration
|
|
B5G124-24
|
B5G124-24P2
|
B5G124-48
|
B5G124-48P2
|
|---|---|---|---|---|
| IEC 68-2-6, IEC 68-2-36 | IEC 68-2-6, IEC 68-2-36 | IEC 68-2-6, IEC 68-2-36 | IEC 68-2-6, IEC 68-2-36 |
Shock
|
B5G124-24
|
B5G124-24P2
|
B5G124-48
|
B5G124-48P2
|
|---|---|---|---|
| IEC 68-2-29 | IEC 68-2-29 | IEC 68-2-29 | IEC 68-2-29 |
Drop
|
|
B5G124-24
|
B5G124-24P2
|
B5G124-48
|
B5G124-48P2
|
|---|---|---|---|---|
| IEC 68-2-32 | IEC 68-2-32 | IEC 68-2-32 | IEC 68-2-32 |
Altitude
|
|
B5G124-24
|
B5G124-24P2
|
B5G124-48
|
B5G124-48P2
|
|---|---|---|---|---|
| Operating | 10,000 ft (3,048 m) | 10,000 ft (3,048 m) | 10,000 ft (3,048 m) | 10,000 ft (3,048 m) |
| Non-operating | 15,000 ft (4,572 m) | 15,000 ft (4,572 m) | 15,000 ft (4,572 m) | 15,000 ft (4,572 m) |
Acoustics
|
|
B5G124-24
|
B5G124-24P2
|
B5G124-48
|
B5G124-48P2
|
|---|---|---|---|---|
| Front of switch (normal operation) | 44.5 dB | 45 dB | 45.5 dB | 44.5 dB |
Agency and Regulatory Standard Specifications
|
|
B5G124-24
|
B5G124-24P2
|
B5G124-48
|
B5G124-48P2
|
|---|---|---|---|---|
| Safety | UL 60950-1, CSA 22.1 60950, EN 60950-1, and IEC 60950-1 | UL 60950-1, CSA 22.1 60950, EN 60950-1, and IEC 60950-1 | UL 60950-1, CSA 22.1 60950, EN 60950-1, and IEC 60950-1 | UL 60950-1, CSA 22.1 60950, EN 60950-1, and IEC 60950-1 |
| EMC | FCC Part 15 (Class A), ICES-003 (Class A), BSMI, VCCI V-3, AS/NZS CISPR 22 (Class A), EN 55022 (Class A), EN 55024, EN 61000-3-2, and EN 61000-3-3 | FCC Part 15 (Class A), ICES-003 (Class A), BSMI, VCCI V-3, AS/NZS CISPR 22 (Class A), EN 55022 (Class A), EN 55024, EN 61000-3-2, and EN 61000-3-3 | FCC Part 15 (Class A), ICES-003 (Class A), BSMI, VCCI V-3, AS/NZS CISPR 22 (Class A), EN 55022 (Class A), EN 55024, EN 61000-3-2, and EN 61000-3-3 | FCC Part 15 (Class A), ICES-003 (Class A), BSMI, VCCI V-3, AS/NZS CISPR 22 (Class A), EN 55022 (Class A), EN 55024, EN 61000-3-2, and EN 61000-3-3 |
| Environmental | 2002/95/EC (RoHS Directive), 2002/96/EC (WEEE Directive), Ministry of Information Order #39 (China RoHS) | 2002/95/EC (RoHS Directive), 2002/96/EC (WEEE Directive), Ministry of Information Order #39 (China RoHS) | 2002/95/EC (RoHS Directive), 2002/96/EC (WEEE Directive), Ministry of Information Order #39 (China RoHS) | 2002/95/EC (RoHS Directive), 2002/96/EC (WEEE Directive), Ministry of Information Order #39 (China RoHS) |
Для моделей B5K125-24; B5K125-24P2; B5K125-48; B5K125-48P2
Performance
|
|
B5K125-24
|
B5K125-24P2
|
B5K125-48
|
B5K125-48P2
|
|---|---|---|---|---|
| Throughput Capacity wire-speed Mpps (switch/stack) |
65.5Mpps / 523.8Mpps | 65.5Mpps / 523.8Mpps | 101.2Mpps / 809.5Mpps | 101.2Mpps / 809.5Mpps |
| Switching Capacity (switch/stack) | 88Gbps (65.5Mpps) / 704Gbps (523.8Mpps) | 88Gbps (65.5Mpps) / 704Gbps (523.8Mpps) | 136Gbps (101.2Mpps) / 1,088Gbps (809.5Mpps) | 136Gbps (101.2Mpps) / 1,088Gbps (809.5Mpps) |
| Stacking Capacity (switch/stack) | 48Gbps (35.7Mpps) / 384Gbps (285.7Mpps) | 48Gbps (35.7Mpps ) / 384Gbps (285.7Mpps) | 48Gbps (35.7Mpps) / 384Gbps (285.7Mpps) | 48Gbps (35.7Mpps) / 384Gbps (285.7Mpps) |
| Aggregate Throughput Capacity (switch/stack) |
136Gbps (101.2Mpps) / 1,088Gbps (809.5Mpps) | 136Gbps (101.2Mpps) / 1,088Gbps (809.5Mpps) | 184Gbps (136.9Mpps) / 1,472Gbps (1,095.2Mpps) | 184Gbps (136.9Mpps) / 1,472Gbps (1,095.2Mpps) |
PoE Specifications
|
|
B5K125-24
|
B5K125-24P2
|
B5K125-48
|
B5K125-48P2
|
|---|---|---|---|---|
| 802.3af Interoperable | N/A | Yes | N/A | Yes |
| 802.3at Interoperable | N/A | Yes | N/A | Yes |
| System Power | N/A | 375 watts per switch with up to 30 watts per port Per-port switch power monitor: Enable/disable Priority safety Overload and short-circuit protection |
N/A | 375 watts per switch with up to 30 watts per port Per-port switch power monitor: Enable/disable Priority safety Overload and short-circuit protection |
Physical Specifications
|
|
B5K125-24
|
B5K125-24P2
|
B5K125-48
|
B5K125-48P2
|
|---|---|---|---|---|
| Dimensions (H x W x D) | H: 4.4 cm (1.73”) W: 44.1 cm (17.36”) D: 36.85 cm (14.51”) |
H: 4.4 cm (1.73”) W: 44.1 cm (17.36”) D: 36.85 cm (14.51”) |
H: 4.4 cm (1.73”) W: 44.1 cm (17.36”) D: 36.85 cm (14.51”) |
H: 4.4 cm (1.73”) W: 44.1 cm (17.36”) D: 36.85 cm (14.51”) |
| Net Weight | 4.92 kg (10.85 lb) | 6.10 kg (13.45 lb) | 5.31 kg (11.70 lb) | 6.49 kg (14.30 lb) |
| MTBF | 374,029 hours | 328,905 hours | 297,808 hours | 252,940 hours |
| Physical Ports | (24) 10/100/1000 auto-sensing, auto-negotiating MDI/MDI-X RJ45 ports (2) Combo SFP ports (2) 10GE ports (2) dedicated stacking ports (1) DB9 console port (1) RPS connector |
(24) 10/100/1000 PoE (.af + .at) auto-sensing, auto-negotiating MDI/MDI-X RJ45 ports (2) Combo SFP ports (2) 10GE ports (2) dedicated stacking ports (1) DB9 console port (1) RPS connector |
(48) 10/100/1000 auto-sensing, auto-negotiating MDI/MDI-X RJ45 ports (2) Combo SFP ports (2) 10GE ports (2) dedicated stacking ports (1) DB9 console port (1) RPS connector |
(48)10/100/1000 PoE (.af + .at) auto-sensing, auto-negotiating MDI/MDI-X RJ45 ports (2) Combo SFP ports (2) 10GE ports (2) dedicated stacking ports (1) DB9 console port (1) RPS connector |
Power Requirements
|
|
B5K125-24
|
B5K125-24P2
|
B5K125-48
|
B5K125-48P2
|
|---|---|---|---|---|
| Normal Input Voltage | 100-240 VAC | 100-240 VAC | 100-240 VAC | 100-240 VAC |
| Input Frequency | 50–60Hz | 50–60Hz | 50–60Hz | 50–60Hz |
| Input Current | 2A Max | 7.5A Max | 2A Max | 7.5A Max |
| Power Consumption | 59 watts | 98 watts | 94 watts | 125 watts |
Temperature
|
|
B5K125-24
|
B5K125-24P2
|
B5K125-48
|
B5K125-48P2
|
|---|---|---|---|---|
| IEC 6-2-1 Standard Operating Temperature | 0° C to 50° C (32° F to 122° F) | 0° C to 50° C (32° F to 122° F) | 0° C to 50° C (32° F to 122° F) | 0° C to 50° C (32° F to 122° F) |
| IEC 6-2-14 Non-Operating Temperature |
-40° C to 70° C (-40° F to 158° F) | -40° C to 70° C (-40° F to 158° F) | -40° C to 70° C (-40° F to 158° F) | -40° C to 70° C (-40° F to 158° F) |
| Heat Dissipation | 200BTUs/Hr | 335BTUs/Hr | 321BTUs/Hr | 427BTUs/Hr |
Humidity
|
|
B5K125-24
|
B5K125-24P2
|
B5K125-48
|
B5K125-48P2
|
|---|---|---|---|---|
| Heat Dissipation | 200BTUs/Hr | 335BTUs/Hr | 321BTUs/Hr | 427BTUs/Hr |
Vibration
|
|
B5K125-24
|
B5K125-24P2
|
B5K125-48
|
B5K125-48P2
|
|---|---|---|---|---|
| IEC 68-2-6, IEC 68-2-36 | IEC 68-2-6, IEC 68-2-36 | IEC 68-2-6, IEC 68-2-36 | IEC 68-2-6, IEC 68-2-36 |
Shock
|
|
B5K125-24
|
B5K125-24P2
|
B5K125-48
|
B5K125-48P2
|
|---|---|---|---|---|
| IEC 68-2-29 | IEC 68-2-29 | IEC 68-2-29 | IEC 68-2-29 |
Drop
|
|
B5K125-24
|
B5K125-24P2
|
B5K125-48
|
B5K125-48P2
|
|---|---|---|---|---|
| IEC 68-2-32 | IEC 68-2-32 | IEC 68-2-32 | IEC 68-2-32 |
Acoustics
|
|
B5K125-24
|
B5K125-24P2
|
B5K125-48
|
B5K125-48P2
|
|---|---|---|---|---|
| Front of switch (normal operation) | 45.5 dB | 45 dB | 46 dB | 45.5 dB |
Altitude
|
|
B5K125-24
|
B5K125-24P2
|
B5K125-48
|
B5K125-48P2
|
|---|---|---|---|---|
| Operating | 10,000 ft (3,048 m) | 10,000 ft (3,048 m) | 10,000 ft (3,048 m) | 10,000 ft (3,048 m) |
| Non-operating | 15,000 ft (4,572 m) | 15,000 ft (4,572 m) | 15,000 ft (4,572 m) | 15,000 ft (4,572 m) |
Agency and Regulatory Standard Specifications
|
|
B5K125-24
|
B5K125-24P2
|
B5K125-48
|
B5K125-48P2
|
|---|---|---|---|---|
| Safety | UL 60950-1, CSA 22.1 60950, EN 60950-1, and IEC 60950-1 | UL 60950-1, CSA 22.1 60950, EN 60950-1, and IEC 60950-1 | UL 60950-1, CSA 22.1 60950, EN 60950-1, and IEC 60950-1 | UL 60950-1, CSA 22.1 60950, EN 60950-1, and IEC 60950-1 |
| EMC | FCC Part 15 (Class A), ICES- 003 (Class A), BSMI, VCCI V-3, AS/NZS CISPR 22 (Class A), EN 55022 (Class A), EN 55024, EN 61000-3-2, and EN 61000-3-3 | FCC Part 15 (Class A), ICES- 003 (Class A), BSMI, VCCI V-3, AS/NZS CISPR 22 (Class A), EN 55022 (Class A), EN 55024, EN 61000-3-2, and EN 61000-3-3 | FCC Part 15 (Class A), ICES- 003 (Class A), BSMI, VCCI V-3, AS/NZS CISPR 22 (Class A), EN 55022 (Class A), EN 55024, EN 61000-3-2, and EN 61000-3-3 | FCC Part 15 (Class A), ICES- 003 (Class A), BSMI, VCCI V-3, AS/NZS CISPR 22 (Class A), EN 55022 (Class A), EN 55024, EN 61000-3-2, and EN 61000-3-3 |
| Environmental | 2002/95/EC (RoHS Directive), 2002/96/EC (WEEE Directive), Ministry of Information Order #39 (China RoHS) | 2002/95/EC (RoHS Directive), 2002/96/EC (WEEE Directive), Ministry of Information Order #39 (China RoHS) | 2002/95/EC (RoHS Directive), 2002/96/EC (WEEE Directive), Ministry of Information Order #39 (China RoHS) | 2002/95/EC (RoHS Directive), 2002/96/EC (WEEE Directive), Ministry of Information Order #39 (China RoHS) |
