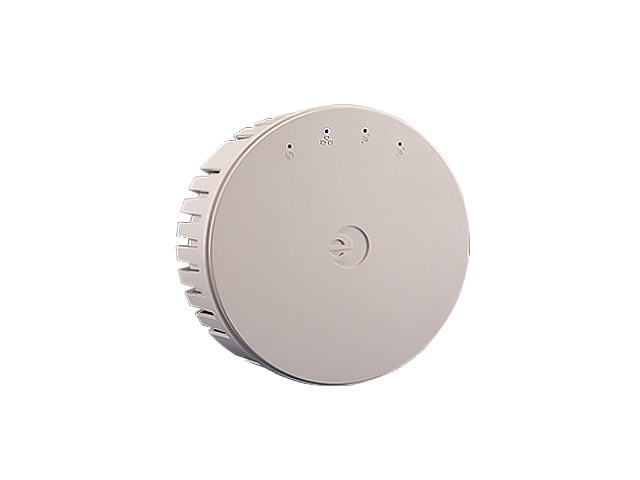

Характеристики Extreme Networks IdentiFi AP3705 Access Point
General
| High-performance enterprise-class AP | YES |
| Number of radios | 2 |
| MIMO implementation for high-performance 11n throughputs | 2×2 |
| Number of spatial streams | 2 |
| Maximum throughput per radio/total | 300Mbps / 600Mbps |
| Wired performance in packets per second (pps) | 40,000 pps |
| Number of SSIDs per radio/total | 8 / 16 |
| Simultaneous users per radio/total | 127 / 254 |
| Mode of operation | Semi-Autonomous |
| Plug-and-play operation/zero-touch deployment | YES |
| AP and the controller run the same firmware versions | YES |
| Security and standards | WPA, WPA2 (AES), 802.11i, 802.1x, IPSec, IKEv2, PKCS #10, X509 DER / PKCS #12 |
Multiple operating modes
| Clients serving access points | YES |
| Intelligent thin AP | YES |
| Distributed and centralized data paths within same SSID | YES |
| Application-based distributed and centralized data paths within same session | YES |
| Simultaneous RF monitoring and client services | YES |
| In-channel WIDS | YES |
| In-channel WIPS | YES |
| Locates devices and threats via RF triangulation | YES |
| Self-forming and self-healing meshing | YES |
| Remote access point | YES |
| Software-based, end-to-end data and control plane encryption | YES |
| Encryption, Security, QoS, and RF management done on AP | YES |
| Private and public cloud deployments | YES |
Hybrid operation
| Security scanning and serve clients on same radio | YES |
| Security scanning and spectrum analysis on same radio | YES |
| Spectrum analysis and serve clients on same radio | YES |
Radio characteristics
| Radio 1 (5GHz) | 25 dBm |
| Radio 2 (2.4GHz) | 24 dBm |
| Max Antenna gain (integrated antenna) | |
| Radio 1 (5GHz) | 3 dBi |
| Radio 2 (2.4GHz) | 3 dBi |
Adaptive radio management
| Dynamic Channel Control | YES |
| Efficient use of the spectrum with a multi-channel architecture | YES |
| Automatic transmit power and channel control | YES |
| Self-healing with coverage gap detection | YES |
| Band Steering with multiple steering modes | YES |
| Spectrum load balancing of clients | YES |
| Airtime fairness | YES |
| Performance protection in congested RF environments | YES |
| Mitigates co-channel interference with coordinated access | YES |
| Mitigate adjacent channel interference with optimized receive sensitivity | YES |
| Efficient reuse of channels at shorter intervals | YES |
| 802.11h: DFS & TPC support (ETSI) | YES |
| Mitigates non 802.11 inference without dedicated radios | YES |
QoS for Applications
| Quality of Service (WMM, 802.11e) | YES |
| Call Admission Control (TSPEC) | YES |
| Power Save (U-APSD) | YES |
| Fast secure roaming and handover between APs | YES |
| Pre-Authentication (Pre-Auth) | YES |
| Opportunistic Key Caching (OKC) | YES |
| Bonjour/LLMNR/UPnP identification, containment, and control | YES |
| Supports voice, video, and data using the same SSID | YES |
| Prioritizes voice over data for both tagged and untagged traffic | YES |
| Rate limiting (rule- and user-based) | YES |
| Rule- and role-based QoS processing | YES |
Multicast rate control
| Multicast to Unicast Conversion | YES |
| Adaptable rate multicast | YES |
| Power save mode optimization for multicast | YES |
Interfaces
| Media Access Protocol | CSMA/CA with ACK |
| Data Rates | 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps; 802.11b: 1, 2, 5.5, 11Mbps
802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54Mbps; 802.11n: See 802.11n Performance table below |
| Frequency Bands | 802.11a/n:
• 5.15 to 5.25GHz (FCC / IC / ETSI) • 5.25 to 5.35GHz (FCC / IC / ETSI) • 5.47 to 5.725GHz (FCC / IC / ETSI) • 5.725 to 5.850GHz (FCC / IC) 802.11b/g/n: • 2.400 to 2.4835GHz (FCC / IC / ETSI) |
| Wireless Modulation | 802.11a: OFDM; 802.11b: DSSS
802.11g: DSSS and OFDM 802.11n: BPSK, QPSK, 16QAM, 64QAM with OFDM 802.11n High-throughput (HT) support: HT 20/40 802.11n Packet aggregation: A-MPDU, A-MSDU 802.11n Advanced Features: LDPC, STBC and TxBF |
Wireless Services
| # 10/100/1000 Base-T Ethernet autosensing link | 1 |
| Console port for the ease of installation and management | YES |
Mounting
| Tool-less drop ceiling rail (9/16, 15/16, 1.5″) installation | YES |
| Integrated/built-in drop ceiling rail clips | YES |
Environmental and Compliance
| Environmental | Plenum rated (EN/UL 2043) Operating: Temperature 0º C to +50º C (+32º F to +122º F) Humidity 0%‐95% (noncondensing) Storage: Transportation: |
| Compliance | •FCC CFR 47 Part 15, Class B •ICES-003 Class B •FCC Subpart C 15.247 •FCC Subpart E 15.407 •RSS-210 •EN 301 893 •EN 300 328 •EN 301 489 1 & 17 •EN 50385 •EN 55011 (CISPR 11) Class B Group 1 ISM •EN 55022 (CISPR 22) •AS/NZS3548 (CISPR22) International (including China) Europe USA / Canada / Mexico (NAFTA) |
Mechanical
| Dimension (Outer Diameter x Height) | 6.625” OD, 1.75” Height |
| Weight | 24.692 oz (700 g) |
| Maximum Power Consumption | 9W |
| Warranty | Lifetime |
