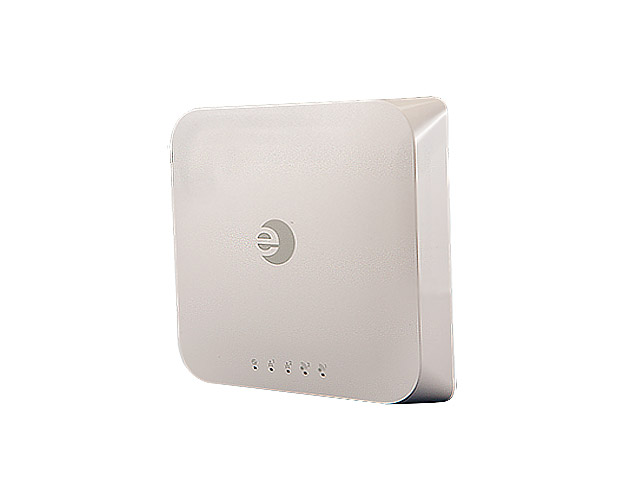

Характеристики Extreme Networks IdentiFi AP3715 Access Point
General
| High-performance enterprise-class AP | YES |
| Number of radios | 2 |
| MIMO implementation for high-performance 11n throughputs | 3×3 |
| Number of spatial streams | 3 |
| Maximum throughput per radio/total | 450Mbps / 900Mbps |
| Wired performance in packets per second (pps) | 60,000 pps |
| Number of SSIDs supported per radio/total | 8 / 16 |
| Simultaneous users per radio/total | 127 / 254 |
| Simultaneous voice calls (802.11b, G711, R>80) | 12 or greater |
| Mode of operation | Semi-autonomous |
| Plug-and-play operation/zero-touch deployment | YES |
| Security and standards | WPA, WPA2 (AES), 802.11i, 802.1x, IPSec, IKEv2, PKCS #10, X509 DER / PKCS #12 |
Multiple operating modes
| Clients serving access points | YES |
| Intelligent thin AP | Encryption, Security, QoS and RF management done on AP |
| Distributed and centralized data paths within same SSID | YES |
| Application based distributed and centralized data paths within same session | YES |
| Simultaneous RF monitoring and client services | YES |
| In-channel WIDS | YES |
| In-channel WIPS | YES |
| Dedicated multi-channel WIDS (Guardian mode) | YES |
| Dedicated multi-channel WIPS (Guardian mode) | YES |
| Dedicated multi-channel RF spectrum analysis and fingerprinting | YES |
| Locates devices and threats via RF triangulation | YES |
| Self-forming and self-healing meshing | YES |
| Remote access point | YES |
| Hardware-based, end-to-end data and control plane encryption | YES |
| Private and public cloud deployments | YES |
Hybrid operation
| Security scanning and serve clients on same radio | YES |
| Security scanning and spectrum analysis on same radio | YES |
| Spectrum analysis and serve clients on same radio | YES |
| Multi-channel dedicated security scanning and spectrum analysis | YES |
Max transmit power
| Radio 1 (5GHz) | 28 dBm |
| Radio 2 (2.4GHz) | 24 dBm |
Max antenna gain
| Radio 1 (5GHz) | 5 dBi (AP3715i) |
| Radio 2 (2.4GHz) | 5 dBi (AP3715i) |
Adaptive radio management
| Dynamic Channel Control | 802.11h: DFS & TPC support (ETSI) |
| Efficient use of the spectrum with a multi-channel architecture | YES |
| Automatic transmit power and channel control | YES |
| Self-healing with coverage gap detection | YES |
| Band steering with multiple steering modes | YES |
| Spectrum load balancing of clients | YES |
| Airtime fairness | YES |
| Performance protection in congested RF environments | YES |
| Mitigates co-channel interference with coordinated access | YES |
| Mitigates adjacent channel interference with optimized receive sensitivity | YES |
| Efficient reuse of channels at shorter intervals | YES |
| Mitigates non 802.11 interference without dedicated radios | YES |
QoS for Applications
| Quality of Service (WMM, 802.11e) | YES |
| Quality of Service (WMM, 802.11e) | YES |
| Power Save (U-APSD) | YES |
| Fast secure roaming and handover between APs | YES |
| Pre-Authentication (Pre-Auth) | YES |
| Opportunistic Key Caching (OKC) | YES |
| Bonjour/LLMNR/UPnP identification, containment and control | YES |
| Supports voice, video and data using the same SSID | YES |
| Prioritizes voice over data for both tagged and untagged traffic | YES |
| Rate limiting (rule and user-based) | YES |
| Rule and role based QoS processing | YES |
| Multicast to unicast Conversion | YES |
| Adaptable rate multicast | YES |
| Power save mode optimization for multicast | YES |
Wireless services
|
Media Access Protocol |
CSMA/CA with ACK |
| Data Rates | 802.11a: 6, 9, 12, 18, 24, 36, 48, 54Mbps 802.11b: 1, 2, 5.5, 11Mbps 802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54Mbps 802.11n: See 802.11n Performance table below |
| Frequency Bands | 802.11a/n: • 5.15 to 5.25GHz (FCC / IC / ETSI) • 5.25 to 5.35GHz (FCC / IC / ETSI) • 5.47 to 5.725GHz (FCC / IC / ETSI) • 5.725 to 5.850GHz (FCC / IC) 802.11b/g/n: • 2.400 to 2.4835GHz (FCC / IC / ETSI) |
| Wireless Modulation | 802.11a: OFDM 802.11b: DSSS 802.11g: DSSS and OFDM 802.11n: BPSK, QPSK, 16QAM, 64QAM with OFDM 802.11n High-throughput (HT) support: HT 20/40 802.11n Packet aggregation: A-MPDU, A-MSDU 802.11n Advanced Features: LDCP, STBC and TxBF |
Interfaces
| # 10/100/1000 Base T Ethernet autosensing link | 2 |
| Console port for the ease of installation and management | YES |
Mechanical
| Dimensions (W x H x L) | 6.56” x 1.34” x 6.56” (AP3715i) 7.12” x 1.34” x 6.56” (AP3715e) |
| Weight | 567g |
| Max power consumption | 12.8W |
| Warranty | Lifetime |
