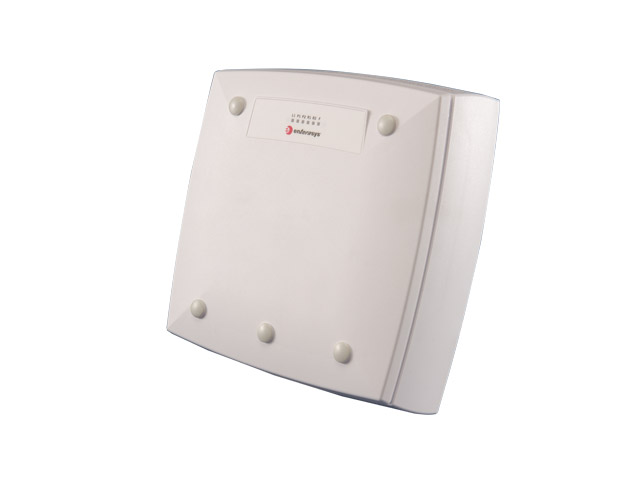

Характеристики Extreme Networks IdentiFi AP376x Access Point
|
Product Features
|
AP3765i/e
|
AP3767e
|
|---|---|---|
| High-performance enterprise-class AP | YES | YES |
| Number of radios | 2 | 2 |
| MIMO implementation for high-performance 11n throughputs | 3×3 | 3×3 |
| Number of spatial streams | 3 | 3 |
| Maximum throughput per radio/total | 450Mbps / 900Mbps | 450Mbps / 900Mbps |
| Wired performance in packets per second (pps) | 60,000 pps | 60,000 pps |
| Number of SSIDs supported per radio/total | 8 / 16 | 8 / 16 |
| Simultaneous users per radio/total | 127 / 254 | 127 / 254 |
| Mode of operation | Semi-autonomous | Semi-autonomous |
| Simultaneous voice calls (802.11b, G711, R>80) | 12 or greater | 12 or greater |
| Plug-and-play operation/zero-touch deployment | YES | YES |
| Security and standards | WPA, WPA2 (AES), 802.11i, 802.1x, IPSec, IKEv2, PKCS #10, X509 DER / PKCS #12 |
WPA, WPA2 (AES), 802.11i, 802.1x, IPSec, IKEv2, PKCS #10, X509 DER / PKCS #12 |
|
Multiple operating modes
|
AP3765i/e
|
AP3767e
|
|---|---|---|
| Clients serving access points | YES | YES |
| Intelligent thin AP | Encryption, Security, QoS, and RF management done on AP | Encryption, Security, QoS, and RF management done on AP |
| Distributed and centralized data paths within same SSID | YES | YES |
| Application-based distributed and centralized data paths within same session | YES | YES |
| Simultaneous RF monitoring and client services | YES | YES |
| In-channel WIDS | YES | YES |
| In-channel WIPS | YES | YES |
| Remote access point | YES | YES |
| RF spectrum analysis and fingerprinting | YES | YES |
| Ready for locating devices and threats via RF triangulation | YES | YES |
| Self-forming and self-healing meshing | YES | YES |
| Remote access point | YES | YES |
| Hardware-based, end-to-end data and control plane encryption | YES | YES |
| Private and public cloud deployments | YES | YES |
|
Hybrid operation
|
AP3765i/e
|
AP3767e
|
|---|---|---|
| Security scanning and serve clients on same radio | YES | YES |
| Security scanning and spectrum analysis on same radio | YES | YES |
| Spectrum analysis and serve clients on same radio | YES | YES |
|
Max transmit power
|
AP3765i/e
|
AP3767e
|
|---|---|---|
| Radio 1 (5GHz) | 23 dBm (AP3765e) | 23 dBm |
| Radio 2 (2.4GHz) | 23 dBm (AP3765e) | 23 dBm |
Max Antenna Gain
|
Max antenna gain
|
AP3765i/e
|
AP3767e
|
|---|---|---|
| Radio 1 (5GHz) | 3 dBi (AP3765i) | NA |
| Radio 2 (2.4GHz) | 3 dBi (AP3765i) | NA |
|
Adaptive Radio Management
|
AP3765i/e
|
AP3767e
|
|---|---|---|
| Dynamic channel control | 802.11h: DFS and TPC support (ETSI) | 802.11h: DFS and TPC support (ETSI) |
| Efficient use of the spectrum with a multi-channel architecture | YES | YES |
| Automatic transmit power and channel control | YES | YES |
| Self-healing with coverage gap detection | YES | YES |
| Band-steering with multiple steering modes | YES | YES |
| Spectrum load balancing of clients | YES | YES |
| Airtime fairness | YES | YES |
| Performance protection in congested RF environments | YES | YES |
| Mitigates co-channel interference with coordinated access | YES | YES |
| Mitigates adjacent channel interference with optimized receive sensitivity | YES | YES |
| Efficient reuse of channels at shorter intervals | YES | YES |
| Mitigates non 802.11 inference without dedicated radios | YES | YES |
|
QoS for Applications
|
AP3765i/e
|
AP3767e
|
|---|---|---|
| Quality of Service (WMM, 802.11e) | YES | YES |
| Call Admission Control (TSPEC) | YES | YES |
| Power Save (U-APSD) | YES | YES |
| Fast secure roaming and handover between APs | YES | YES |
| Pre-Authentication (Pre-Auth) | YES | YES |
| Opportunistic Key Caching (OKC) | YES | YES |
| Bonjour/LLMNR/UPnP identification, containment and control | YES | YES |
| Support voice, video, and data using the same SSID | YES | YES |
| Prioritize voice over data for both tagged and untagged traffic | YES | YES |
| Rate limiting (rule- and user-based) | YES | YES |
| Rule- and role-based QoS processing | YES | YES |
|
Multicast Rate Control
|
AP3765i/e
|
AP3767e
|
|---|---|---|
| Multicast to unicast conversion | YES | YES |
| Adaptable rate multicast | YES | YES |
| Power save mode optimization for multicast | YES | YES |
|
Wireless Services
|
AP3765i/e
|
AP3767e
|
|---|---|---|
| Media Access Protocol | CSMA/CA with ACK | CSMA/CA with ACK |
| Data Rates | 802.11a: 6, 9, 12, 18, 24, 36, 48, 54Mbps 802.11b: 1, 2, 5.5, 11Mbps 802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54Mbps 802.11n: See 802.11n Performance table below |
802.11a: 6, 9, 12, 18, 24, 36, 48, 54Mbps 802.11b: 1, 2, 5.5, 11Mbps 802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54Mbps 802.11n: See 802.11n Performance table below |
| Frequency Bands | 802.11a/n: • 5.15 to 5.25GHz (FCC / IC / ETSI) • 5.25 to 5.35GHz (FCC / IC / ETSI) • 5.47 to 5.725GHz (FCC / IC / ETSI) • 5.725 to 5.850GHz (FCC / IC) 802.11b/g/n: • 2.400 to 2.4835GHz (FCC / IC / ETSI) |
802.11a/n: • 5.15 to 5.25GHz (FCC / IC / ETSI) • 5.25 to 5.35GHz (FCC / IC / ETSI) • 5.47 to 5.725GHz (FCC / IC / ETSI) • 5.725 to 5.850GHz (FCC / IC) 802.11b/g/n: • 2.400 to 2.4835GHz (FCC / IC / ETSI) |
| Wireless Modulation | 802.11a: OFDM 802.11b: DSSS 802.11g: DSSS and OFDM 802.11n: BPSK, QPSK, 16QAM, 64QAM with OFDM 802.11n High-throughput (HT) support: HT 20/40 802.11n Packet aggregation: A-MPDU, A-MSDU 802.11n Advanced features: LDPC and STBC |
802.11a: OFDM 802.11b: DSSS 802.11g: DSSS and OFDM 802.11n: BPSK, QPSK, 16QAM, 64QAM with OFDM 802.11n High-throughput (HT) support: HT 20/40 802.11n Packet aggregation: A-MPDU, A-MSDU 802.11n Advanced features: LDPC and STBC |
|
Interfaces
|
AP3765i/e
|
AP3767e
|
|---|---|---|
| Wired Interfaces | 1 x 10/100/1000 E/N | 2 x SFP GE |
| Console port for the ease of installation and management | YES | YES |
|
Mounting
|
AP3765i/e
|
AP3767e
|
|---|---|---|
| Direct wall mount | YES | YES |
| Removable wall mounting bracket | Optional | Optional |
| Pole mounting bracket | Optional | Optional |
| Environmental | Operating: Temperature: -40º C to +60º C (-40º F to +140º C) Humidity: 0%‐95%, (non-condensing) Storage: Transportation: Protection: IP65, NEMA4, UL HAZLOC, FM, ATEX |
Operating: Temperature: -40º C to +60º C (-40º F to +140º C) Humidity: 0%‐95%, (non-condensing) Storage: Transportation: Protection: IP65, NEMA4, UL HAZLOC, FM, ATEX |
| Compliance | •FCC CFR 47 Part 15, Class B •ICES-003 Class B •FCC Subpart C 15.247 •FCC Subpart E 15.407 •RSS-210 •EN 301 893 •EN 300 328 •EN 301 489 1 & 17 •EN 50385 •EN 55011 (CISPR 11) Class B Group 1 ISM •EN 55022 (CISPR 22) •AS/NZS3548 (CISPR22) International (including China) •IEC 60950-1 •IEC 60825 Europe •EN 60950-1 •EN 60825 USA / Canada / Mexico (NAFTA) •UL 60950-1 •CSA 22.2 No.60950-1-03 Australia •AS/NZS 60950.1 |
•FCC CFR 47 Part 15, Class B •ICES-003 Class B •FCC Subpart C 15.247 •FCC Subpart E 15.407 •RSS-210 •EN 301 893 •EN 300 328 •EN 301 489 1 & 17 •EN 50385 •EN 55011 (CISPR 11) Class B Group 1 ISM •EN 55022 (CISPR 22) •AS/NZS3548 (CISPR22) International (including China) •IEC 60950-1 •IEC 60825 Europe •EN 60950-1 •EN 60825 USA / Canada / Mexico (NAFTA) •UL 60950-1 •CSA 22.2 No.60950-1-03 Australia •AS/NZS 60950.1 |
|
Mechanical
|
AP3765i/e
|
AP3767e
|
|---|---|---|
| Dimension | (W x H x D) 9.9” x 9.9” x 2.8” (251 mm x 251 mm x 72 mm) | (W x H x D) 9.9” x 9.9” x 2.8” (251 mm x 251 mm x 72 mm) |
| Weight | Without optional PS adapter: 79.1 oz (2241 g) With optional AC PS adapter: 85.8 oz (2433 g) |
Without optional PS adapter: 79.1 oz (2241 g) With optional AC PS adapter: 85.8 oz (2433 g) |
| Power consumption | 15.6W Max / 15W Typical with 2 radios | 15.6W Max / 15W Typical with 2 radios |
| Warranty | 1 Year | 1 Year |
